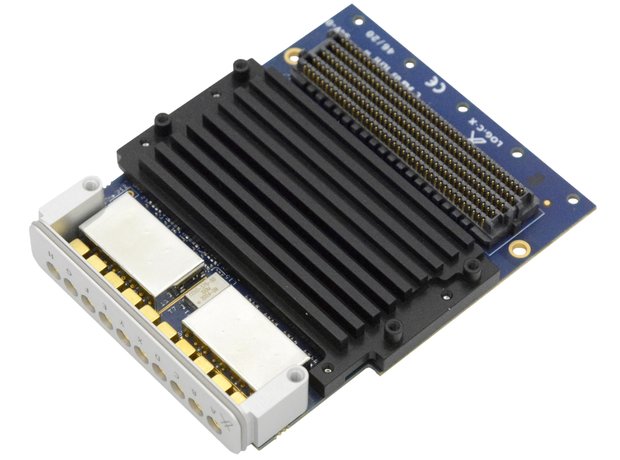

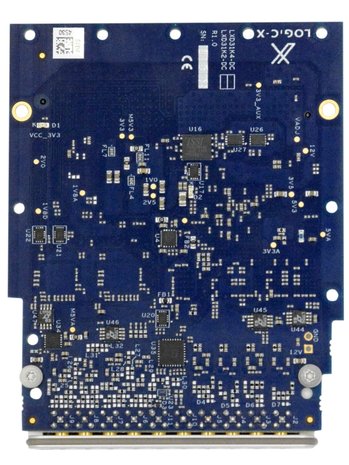

LXD31K4 Quad MIMO FMC Module

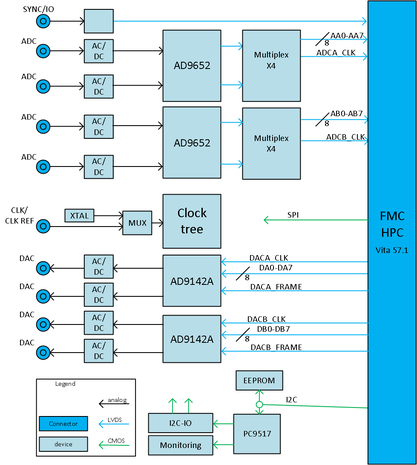

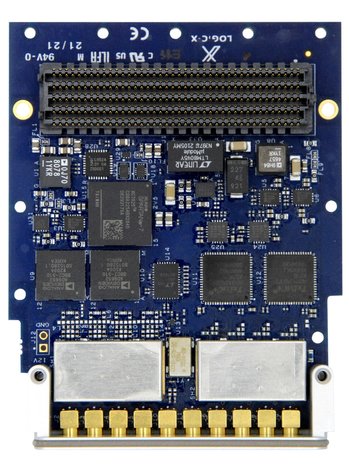

The LXD31K4 provides four 16-bit A/D channels with up to 310 Msps data rate and four 16-bit D/A channels with up to 310 Msps data rate with a 1.24 Gsps update rate. This is the only FMC card on the market to offer this number of channels with LVDS digital signalling interfaces. The design is based on the Analog devices AD9652 analog to digital converters and the Analog devices AD9142A digital to analog converters.
Analog input and output
Depending on the application requirements it is possible to order the LXD31K4 with either a DC coupled or an AC coupled analog front end. The DC coupled interface is meant for signal acquisitions and playback in the first Nyquist zone while the AC coupled inputs also offers the option for signal acquisition and playback in the second Nyquist zone.
16 bit
Both the ADC and DAC offer 16-bits resolution further contributing to achieve best in class signal to noise ratios.
LVDS signaling
Both the ADC and DAC device make use of LVDS signaling for their data interfaces. This allows easy integration of the LXD31K4 into user FPGA designs without the need to acquire expensive and complex JESD204B interface cores. Furthermore the pinout is chosen in a way that it will work on most of the partial implementations of the high pin count connectors on Xilinx development boards as well as the Logic-X FPGA FMC carrier boards.
Clock tree
The onboard low noise clock generator ensures easy integration into small single board systems as well as standalone operation. For larger systems it is possible to easily synchronize multiple boards by providing an external reference clock. This is a special feature offered by the onboard clock PLL.
Applicatons
Systems that will beneft greatly from this product are:

  • MIMO Applications
  • Radar waveform generators and receivers
  • Digital Beam Forming
  • Medical systems
  • Telecommunicaton systems
  • Experimental Physics
  • Analog record and playback systems
  • Aerospace and test instrumentation
  • Software defined radio (SDR)
Contact us for more information.

Product Information

Number of analog input channels
4
Number of analog output channels
4
Front panel IO connector type
SSMC or MMCX
Front panel IO type
ADC/DAC
Form Factor
FMC - High pin count (HPC)

Analog input specification

Input coupling
AC or DC coupled
Input maximum sample rate
310 Msps
Input number of bits
16 bits resolution
Impedance
50 Ω
Input bandwidth AC coupled
10 MHz - 400 MHz
Input bandwidth DC coupled
DC - 200 MHz
Input AC full scale power
+6 dBm
Input DC full scale power
+12 dBm

Analog output specifications

Output coupling
AC or DC coupled
Output maximum sample rate
310 Msps (1210 MHz update rate)
Output number of bits
16 bits resolution
Impedance
50 Ω
Output impedance AC coupled
10 MHz - 400 MHz
Output bandwidth DC coupled
DC - 200 MHz
Output AC full scale power
+6 dBm
Output DC full scale power
+12 dBm

Legislation and Environmental

Supported operating temperature
Commercial (0°C ~ 70°C) and Industrial (-40°C ~ 85°C)
Ruggedization
standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant
Yes - RoHS Phthalates Compliant
SVHC
Product contains no SVHC (15-May-2020)
Country of origin
the Netherlands ( Europe)
Tariff Number (HS code)
854231 - Electronic printed circuits
ECCN
3A002.h.1.e
