LXD30K0

With the LXD30K0 it is possible to perform low latency data acquisition and playback of analog signals at 5.4 Gsps with a resolution of 12 bits. The product is compatible with the KCU105 and other Xil

Gewicht

0,200 KG

Request a quotation

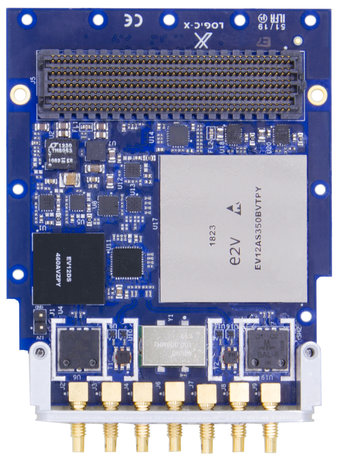

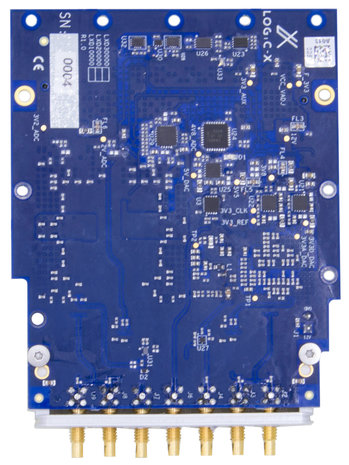

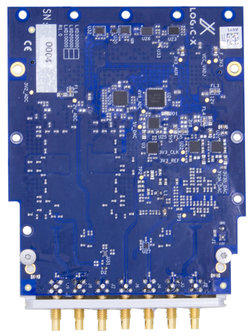

With the LXD30K0 Logic-X provides a unique analog interface product that is based on the 12-bits low latency wide bandwidth ADC (EV12AS350A) and DAC  EV12DS460) from Teledyne E2V. Multi card synchronizaton is supported thanks to a flexible clock tree and external synchronization trigger input.
Analog input
With an analog input stage that has a very wide input bandwidth from 0.5MHz up-to 4.8GHz and the low latency 5.4Gsps ADC from E2V (EV12AS350A) the LXD30K0 delivers unmatched performance with regards to SFDR, close in phase noise and latency (7.2 ns). Sampling at 5.4 Gsps offers an instantaneous bandwidth of 2.7GHz.
Analog output
Surpassing the analog input, the analog output offers an even lower latency (1.2 ns) using the EV12DS460 DAC device from E2V. The output bandwidth ranges from 0.5MHz to 6GHz and the instantaneous output bandwidth is 1.35GHz.
12 bit
Both the ADC and DAC offer 12-bits resolution further contributng to achieve best in class signal to noise ratios.
Low Latency
It is possible to achieve a very low latency from the RF input to the RF output because of the LVDS connectvity to the host carrier. This can be less than 18 ns, depending on the carrier that is used.

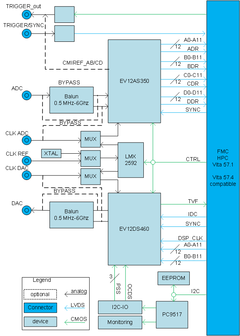

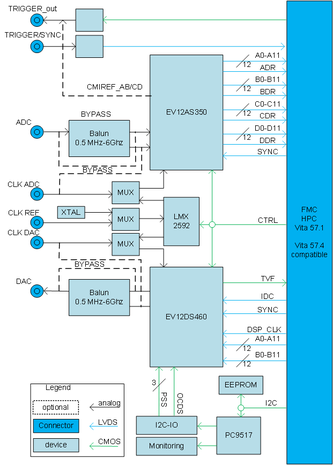

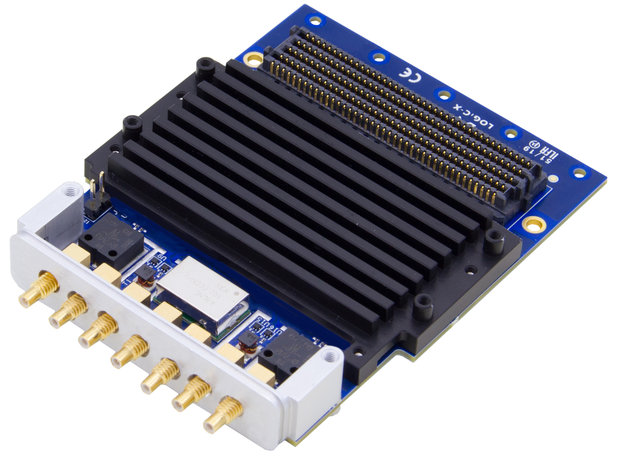

Clock tree
The onboard low noise clock generator ensures easy integraton into small single channel systems as well as standalone operaton. For larger systems it is possible to directly provide the sample clock to the front panel SSMC connector or to synchronize the local clock generator to an external reference clock.
Applicatons
Systems that will beneft greatly from this product are:

  • Electronic Warfare systems
  • Radar waveform generators and receivers
  • Advanced digital radio frequency memory (DRFM) systems
  • Medical systems
  • Telecommunicaton systems
  • and many more.
Contact us for more information.

Product Information

Number of analog input channels
1
Number of analog output channels
1
Front panel IO connector type
SSMC or MMCX
Front panel IO type
ADC/DAC
Form Factor
FMC - High pin count (HPC)

Analog input specification

Input coupling
AC coupled
Input maximum sample rate
5.4 Gsps
Input number of bits
12 bits resolution
Impedance
50 Ω
Input bandwidth AC coupled
0.5 MHz - 4.8 GHz
Input AC full scale power
+8.5 dBm

Analog output specifications

Output coupling
AC coupled
Output maximum sample rate
2.7 Gsps (5.4 GHz update rate)
Output number of bits
12 bits resolution
Impedance
50 Ω
Output impedance AC coupled
0.5 MHz - 6 GHz
Output AC full scale power
-5 dBm (NRZ mode)

Legislation and Environmental

Supported operating temperature
Commercial (0°C ~ 70°C) and Industrial (-40°C ~ 85°C)
Ruggedization
standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant
Yes - RoHS Phthalates Compliant
SVHC
Product contains no SVHC (15-May-2020)
Country of origin
the Netherlands ( Europe)
Tariff Number (HS code)
854231 - Electronic printed circuits
ECCN
3A002.h.1.c
