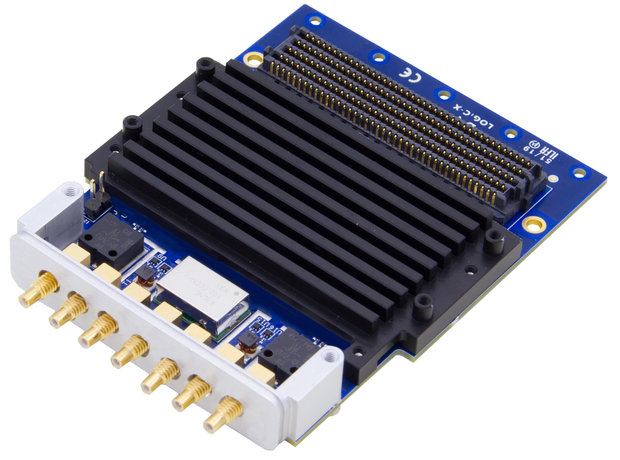

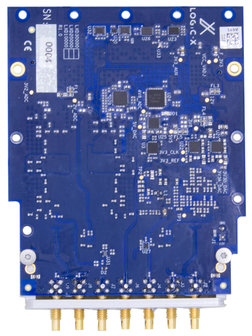

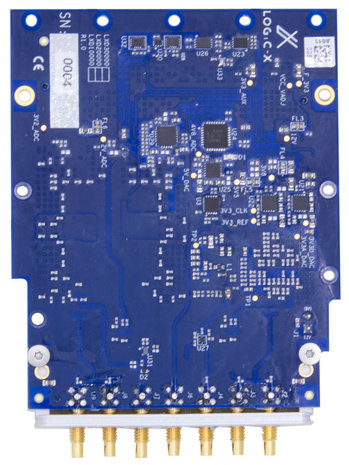

LXD20K0

With the LXD20K0 it is possible to perform low latency data playback of analog signals at 5.4 Gsps with a resolution of 12 bits.

Gewicht

0,200 KG

Request a quotation

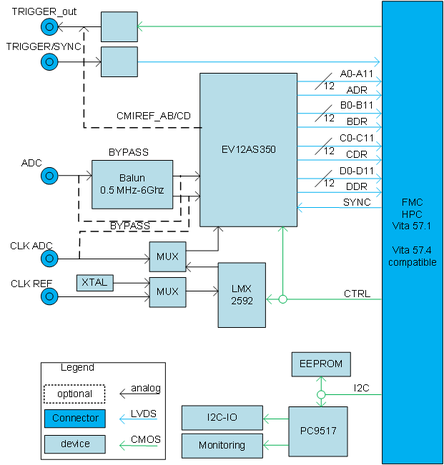

With the LXD20K0 Logic-X provides a unique analog interface product that is based on the 12-bits low latency wide bandwidth DAC (EV12DS460) from Teledyne E2V. Multi card synchronization is supported thanks to a flexible clock tree and external synchronization trigger input.
Analog output
The analog output offers a lowe latency (1.2 ns) from FPGA to RF using the EV12DS480 DAC device from E2V. The product has an output bandwidth from 0.5MHz to 6GHz. The instantaneous output bandwidth is up-to 1.35 GHz. Thanks to the unique operating modes of the EV12DS460 it is possible to place the signal into the higher Nyquist bands.
12 bit
The DAC offers a 12-bits resolution further contributing to achieve best in class signal to noise ratios.
Low Latency
It is possible to achieve a very low latency from the RF input to the RF output because of the LVDS connectvity to the host carrier. This can be less than 18 ns, depending on the carrier that is used.
Clock tree
The onboard low noise clock generator ensures easy integraton into small single channel systems as well as standalone operaton. For larger systems it is possible to directly provide the sample clock to the front panel SSMC connector or to synchronize the local clock generator to an external reference clock.
Applicatons
Systems that will beneft greatly from this product are:

  • Electronic Warfare systems
  • Radar waveform generators and receivers
  • Advanced digital radio frequency memory (DRFM) systems
  • Medical systems
  • Telecommunicaton systems
  • and many more.
Contact us for more information.

Product Information

Number of analog input channels
1
Number of analog output channels
1
Front panel IO connector type
SSMC or MMCX
Front panel IO type
DAC
Form Factor
FMC - High pin count (HPC)

Analog input specification

Input coupling
AC coupled
Input maximum sample rate
310 Msps
Input number of bits
16 bits resolution
Impedance
50 Ω
Input bandwidth AC coupled
0.5 MHz - 4.8 GHz
Input AC full scale power
+8.5 dBm

Analog output specifications

Output coupling
AC coupled
Output maximum sample rate
2.7 Gsps (5.4 GHz update rate)
Output number of bits
16 bits resolution
Impedance
50 Ω
Output impedance AC coupled
0.5 MHz - 6 GHz
Output AC full scale power
-5 dBm (NRZ mode)

Legislation and Environmental

Supported operating temperature
Commercial (0°C ~ 70°C) and Industrial (-40°C ~ 85°C)
Ruggedization
standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant
Yes - RoHS Phthalates Compliant
SVHC
Product contains no SVHC (15-May-2020)
Country of origin
the Netherlands ( Europe)
Tariff Number (HS code)
854231 - Electronic printed circuits
ECCN
3A002.h.1.c
