LXD11K8

The LXD11K8 provides eight16-bit A/D channels with up to 310 Msps data rate. The product is compatible with the KC

Gewicht

0,200 KG

Request a quotation

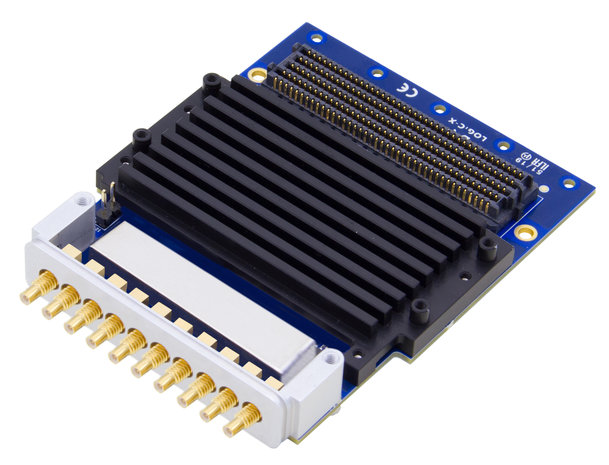

LXD11K8 Octal ADC FMC Module

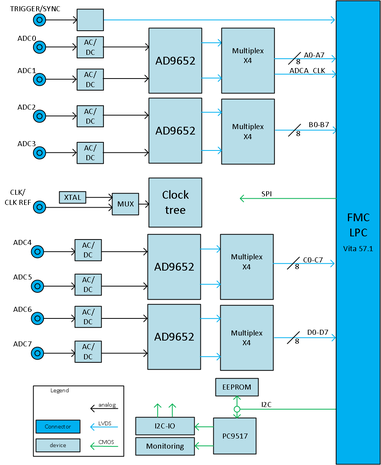

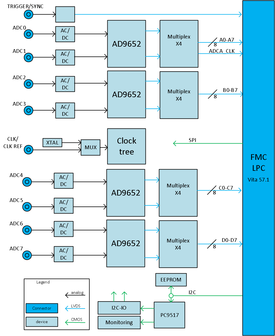

The LXD11K8 provides eight 16-bit A/D channels with up to 310 Msps data rate. All the data interfaces are based on LVCMOS and LVDS signalling. The design is based on the Analog devices AD9652 analog to digital converters.
Analog input and output
Depending on the application requirements it is possible to order the LXD11K8 with either a DC coupled or an AC coupled analog front end. The DC coupled interface is meant for signal acquisitions in the first Nyquist zone while the AC coupled inputs also offers the option for signal acquisition in the second Nyquist zone.
16 bit
The ADCs offer 16-bits resolution further contributing to achieve best in class signal to noise ratios.
LVDS signaling
The ADC devices make use of LVDS signaling for their data interfaces. This allows easy integration of the LXD11K8 into user FPGA designs without the need to acquire expensive and complex JESD204B interface cores. Furthermore the low pin count implementation make sure the card can be used on all Xilinx development boards as well as the Logic-X FPGA FMC carrier boards.
Clock tree
The onboard low noise clock generator ensures easy integration into small single board systems as well as standalone operation. For larger systems it is possible to easily synchronize multiple boards by providing an external reference clock. This is a special feature offered by the onboard clock PLL.
Applicatons
Systems that will beneft greatly from this product are:

  • MIMO Applications
  • Radar waveform receivers
  • Digital Beam Forming
  • Medical systems
  • Telecommunicaton systems
  • Experimental Physics
  • Analog playback systems
  • Aerospace and test instrumentation
  • Software defined radio (SDR)
Contact us for more information.

Product Information

Number of analog input channels
8
Number of analog output channels
8
Front panel IO connector type
SSMC or MMCX
Front panel IO type
ADC
FPGA type
Kintex Ultrascale - KU060 (530K logic Cells, 38Mb Block RAM, 2760 DSP slices)
Form Factor
FMC - Low pin count (LPC)

Analog input specification

Input coupling
AC or DC coupled
Input maximum sample rate
310 Msps
Input number of bits
16 bits resolution
Impedance
50 Ω
Input bandwidth AC coupled
10 MHz - 400 MHz
Input bandwidth DC coupled
DC - 200 MHz
Input AC full scale power
+6 dBm
Input DC full scale power
+12 dBm

Legislation and Environmental

Supported operating temperature
Commercial (0°C ~ 70°C) and Industrial (-40°C ~ 85°C)
Ruggedization
standard Commercial Air-cooled and Rugged Conduction- cooled
ROHS Compliant
Yes - RoHS Phthalates Compliant
SVHC
Product contains no SVHC (15-May-2020)
Country of origin
the Netherlands ( Europe)
Tariff Number (HS code)
854231 - Electronic printed circuits
ECCN
3A002.h.1.e
